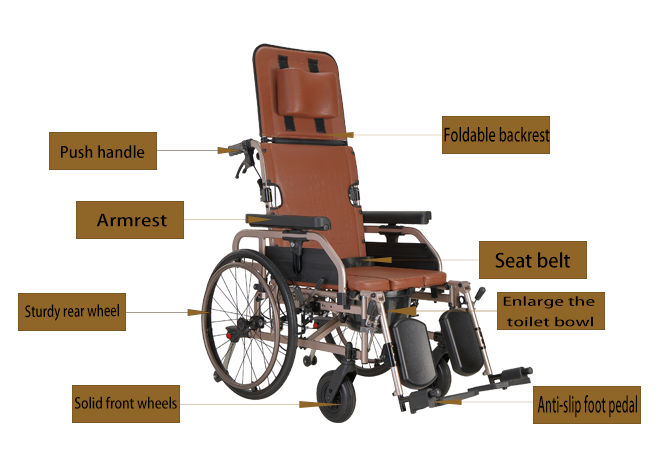

Frame: Flat tube aluminum 30*15mm, wall thickness 1.8mm welded combination of molding, the use of back flip armrests, removable legs, foldable structure, good safety performance, with a high backrest bracket, equipped with individually removable and washable U-type pillows; the surface ofthetitanium silver treatment, beautiful and durable.
Front wheel: 7-inch plastic wheel hub with high-quality solid PU tires, double bearings, flexible steering to reduce bumps; with high-strength plastic forks;
Rear wheel: 22-inch (55cm) PU rear wheel, 28-wire aluminum rims, non-inflatable PU solid wheels; configured with high-strength aluminum handwheel.
Brake: two-stage self-locking rear brake, iron handbrake, rear handlebar brake, a line of dual brake function is simple and practical.
Back: adjustable backrest angle, range 93°-180°, easy to lie down and rest, double lifting gas spring support bar is solid and reliable.
Seat cushion: the back cushion and seat cushion are made of gray PVC sewing molding, soft texture, high tensile strength, with back pocket; the seat plate adopts the front pull-out type, which is convenient for nursing operation.
Armrests: movable dismountable armrests, easy to dismantle, with PU armrest pads, a key button lift function;
guard plate: ABS high-grade guard plate;
footrest: leg removable, outwardly rotating flexible and convenient; configuration of high-quality plastic footrests, height up and down, bracket can be inside and outside of the rotating ± 180; with gray PVC leg cushion;
dining board: optional high-strength engineering plastic dining board.
Applicable people: only the upper limb arm strength is good enough to drive the wheelchair, to adapt to the need for long-term dependence on the wheelchair life of the disabled and the elderly.
Precautions for use:
1. Check whether the tires are broken and whether the braking device is normal before taking the wheelchair
2. Before taking the wheelchair, pull down the handbrake so that the wheelchair can not be moved
3.When crossing the threshold or steps, the caregiver should step on the footlever under the chair seat, lift the front wheels of the wheelchair, and put down the wheelchair after the front wheels pass through the obstacles
4. When going down the slope and steps, let the rear wheels of the wheelchair go down in the forward direction, and push the wheelchair user to fall back, so as to prevent the user from leaning forward and falling down. When descending slopes and steps, let the rear wheels of the wheelchair go down first and the person pushing the wheelchair go backward to prevent the rider from falling forward.
